2003-2004.5 Heavy Duty High Volume 6.0L Billet High Pressure Oil Pump (HPOP)


Your Cost: From $999.00 to $1,299.00

Choose A Product Option Below

Output Volume Desired:

Select Options Below Before Adding to Cart

* denotes required field

REQUIRED INFO: There is a Core Charge on this item. If you send a core in first, your fee will be waived. If you send your core later, you will be charged a refundable $250 core charge. Choose One:*

24 MONTH UNLIMITED WARRANTY
Our pump has been rock solid and we're proud to now offer a full 24 month unlimited warranty. This warranty covers anything short of abuse, tampering and obvious physical damage. Warranties are VOID on any pump that has been tampered with.

ADRENALINE PUMP CORES: IF YOU SEND ANY EXTRA IN ADDITION TO YOUR ADRENALINE CORE THEN THEY ARE WORTH $100.  $25 EACH FOR BLOWN OUT PUMPS.  WE WILL TAKE YOUR ORIGINAL CORES THAT ARE BEYOND THEIR 60 DAY RETURN POLICY FOR $100.

FOR THOSE WANTING TO SEND CORES IN WITHOUT A PUMP PURCHASE: WE CAN ACCEPT ALL CORES FROM 1994-2004.5 7.3L and 6.0L.  WE WILL GIVE YOU  $100 EACH FOR THESE PUMPS CORES.

APPLICATION: ALL 2003 -2004.5 6.0L ENGINES

BILLET HIGH PRESSURE OIL FOR THE 2003-2004 6.0L!

STOCK OR HIGH OUTPUT VERSIONS AVAILABLE!

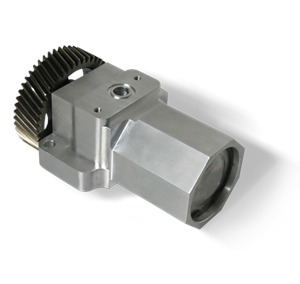

This is a bolt in replacement billet aluminum housing High Pressure Oil Pump for the 2003-2004 6.0L Powerstroke engines. There are HEAVY DUTY upgrades to the internals in addition to the billet housing.

There are two versions:

$999 STOCK OUTPUT: The stock output Heavy Duty version has all the same upgrades as the high output version in regards to durability. This option is for stock injectors up through 190cc.  It is a perfect option for those not looking for High performance parts as the longevity - in theory - might prove better on these units as one would presume. Our "Stock Output" is slightly larger in volume than a stock pump.

$1299 HIGH OUTPUT: Our Adrenaline Heavy Duty version - this high Output Version was first introduced built in the stock housings and has been running in trucks since April of 2009. It will be an improvement in performance over your stock pump for stock or larger injectors. We have had great success feeding any injector size from stock up to a conventional 270cc and 300+cc hybrid injectors. Note for 2005-2007: you can only use this if you retrofit all your rails and HPOP components out to the 2004 version, or wait for our 2005-2007 version ... The 2005-2007 version is beginning the prototype process now.

Have you recently lost your 03-04 HPOP? When they fail, they usually give you no signs or advance notice, they just stall out the engine and it won't re-start.

 There are several reasons for this in the stock pumps. We have addressed all of these OEM issues in the design of our heavy duty pumps - both versions.

  • All of our pumps are shipped to you with a gear assembled on the unit. You MUST send back your gear and gear bolt for a core to be accepted.

THIS IS A FAIRLY COMPLICATED INSTALL FOR THE DO IT YOURSELFER.  IF YOU ARE NOT FAMILIAR WITH THE PROCEDURE, LOCATION OF YOUR PUMP  OR SCANNING METHODS THEN THIS MAY NOT BE THE MOD FOR YOU. THERE ARE NO INSTRUCTIONS PROVIDED FOR THE 6.0L INSTALL.

  • Bolt in replacement with heavy duty parts for increased longevity and reliability
  • No special programming or programming changes are needed and would be optional
  • Fuel mileage increases have been seen on every truck we've tested - this higher efficiency pump will provide fuel mileage gains that can exceed those of larger pump choices
  • Just need a new HPOP? The Adrenaline is a heavy duty, more efficient, upgraded and higher volume pump than a stock pump and provides fuel mileage increase as well.
  • Up to 25 new parts in every rebuild - 12 of them improved over stock
  • Full BILLET external. Machined from a solid 20lb block of 6061 aluminum.
  • We have reduced the pump's efficiency loss by adding six new precision processes during the assembly of our pumps equating to increased pump volume, better fuel mileage, longer life and smoother operation
  • Every pump incorporates a dual ball bearing cartridge with a larger swashplate and a longer stroke that retains safe, reliable pump operation by maintaining the required rotational freedom of the piston socket for an axial piston pump
  • The Adrenaline version of our HPOP provides more oil than most truck configurations will require. In most instances, the stock output version will be more oil than you need as it is slightly larger in volume than a stock OEM pump.
  • A core is required and we accept only 2003-2004 6.0L HPOPs at this time.
  • Everything that we have ever found to cause a failure or weakening in the stock pump has been addressed in all of our pumps. - Even the OEM housing has a design flaw that the new billet housing addresses.
  • INCLUDES new install o-ring set
  • Does NOT include engine cover gasket
